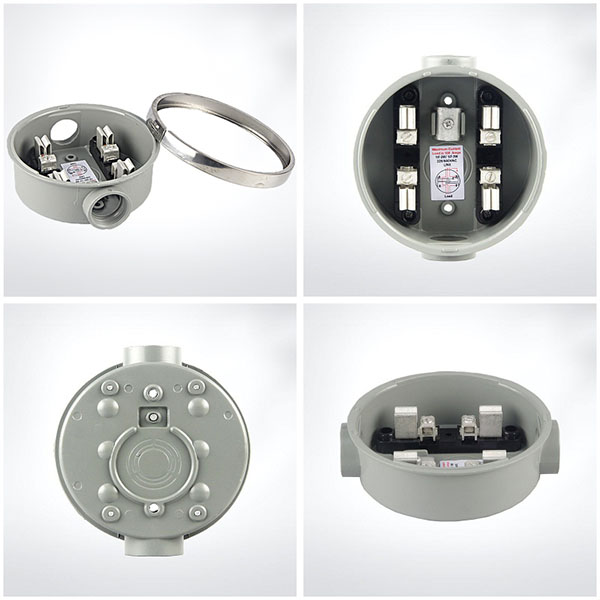

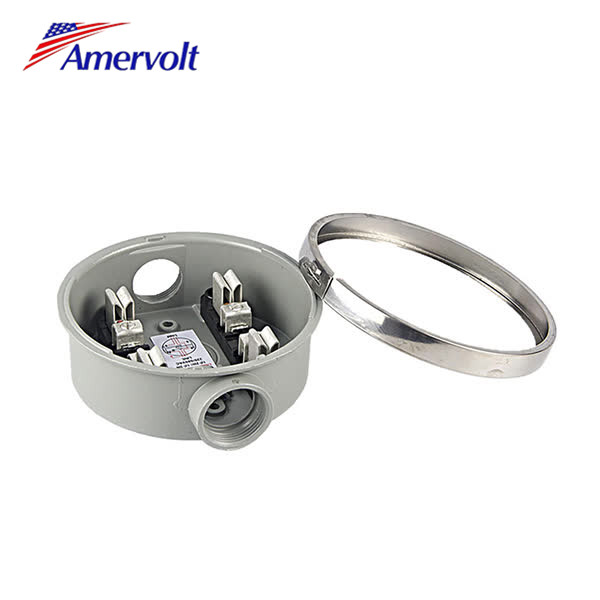

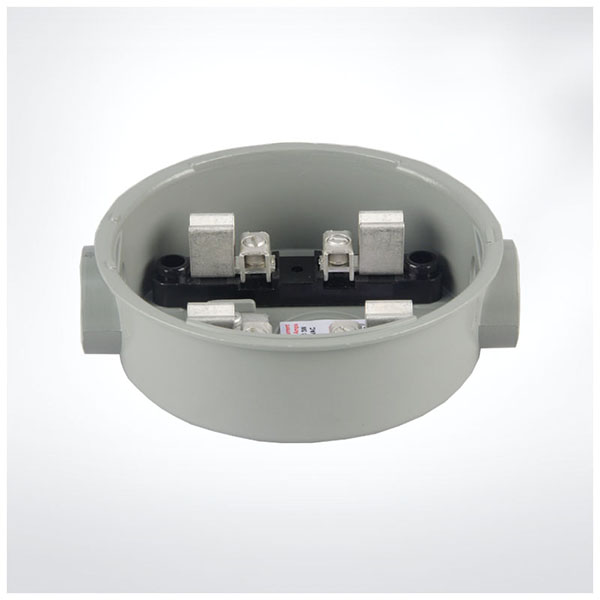

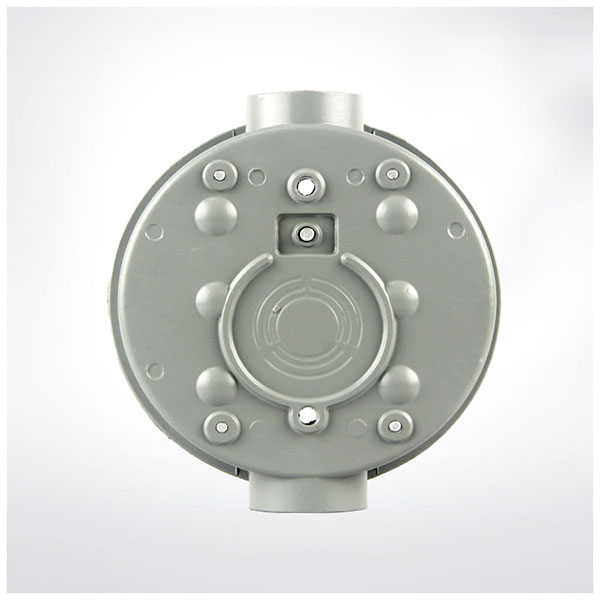

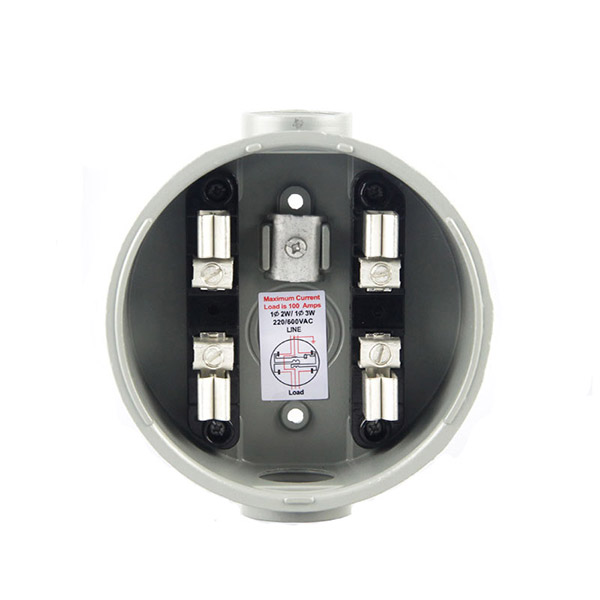

AM-100R-D type round meter socket
Parameter
| Product Name | round meter socket |
| Max Current | 125 Amperes |
| Max Voltage | 600V |
| Color | RAL 7032 |
| Insulated Block | Epoxy resin / polycarbonate |
| Housing Material | Die cast aluminum |
| Waterproof Class | NEMA3R |
| Supply Ability | 100000 Piece/Pieces per Month round meter socket |
Product Description
Amervolt offers hundreds of different types of single position, residential, self-contained meter sockets, as well as instrument-rated meter sockets. Applications range from a single-family house to a large industrial factory. There are hundreds of configurations available, including many sizes, knockout configurations, terminal configurations, hubs, locks and connectors
Feature
·00Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector
·The Die-cast Aluminum enclosure.Electrostatically applied epoxy and polyester resins,which are baked on.Gray color exterior.
·The current carrying parts are made of phosphor copper.
·The ground connector is designed to in sure a positive electrical connection by effectively clamping the conductor against a serrated surface.

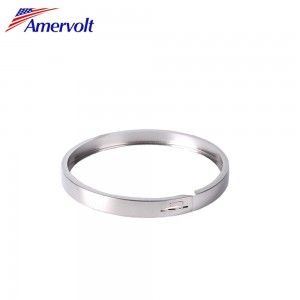

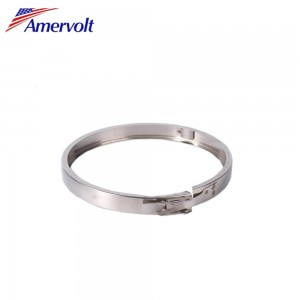

·Stainless steel sealing ring
·Fix hub size: 1/2,3/4,1,1-1/4 for option
Size
| Product Model | Description | Fixed Hub Size | Stds Pack |
| AM-100B | 1 Phase,100A,120/240Vac,4 jaws | 1/2″ | 40 |
| AM-100C | 1 Phase,100A,120/240Vac,4 jaws | 3/4″ | 40 |
| AM-100D | 1 Phase,100A,120/240Vac,5 jaws | 1″ | 40 |
| AM-100E | 1 Phase,100A,120/240Vac,5 jaws | 1-1/4″ | 40 |

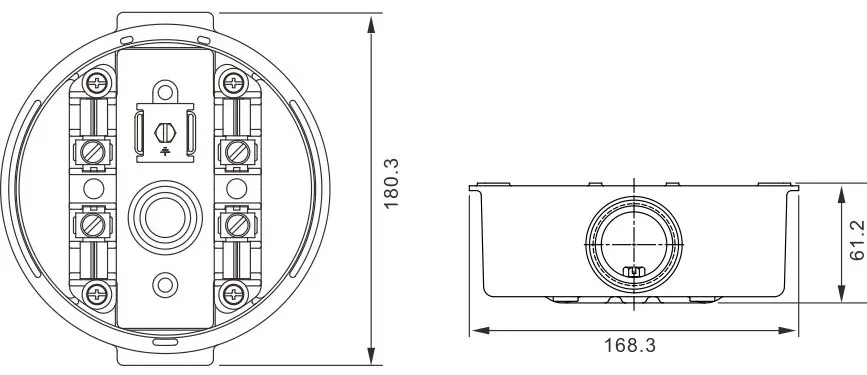

Demision
Packaging & Delivery
Packaging Details: Inner Boxes + Standard Export Carton
Port Ningbo/Shanghai
